Water Spray systems can be designed with manual or automatic control. System design is often realized using Flood valves according to NFPA 15 or API 2030 standards.
Nozzles; MV Medium Velocity water spray nozzles, HV High Velocity water spray nozzles, Water Curtain nozzles, Tank Cooling nozzles, etc. It would be correct to group them.
MV nozzles are used in fixed water spray systems in fire protection applications. MV spray nozzles discharge a water spray of medium velocity water droplets evenly over a designated scanning area for effective extinguishing and cooling.

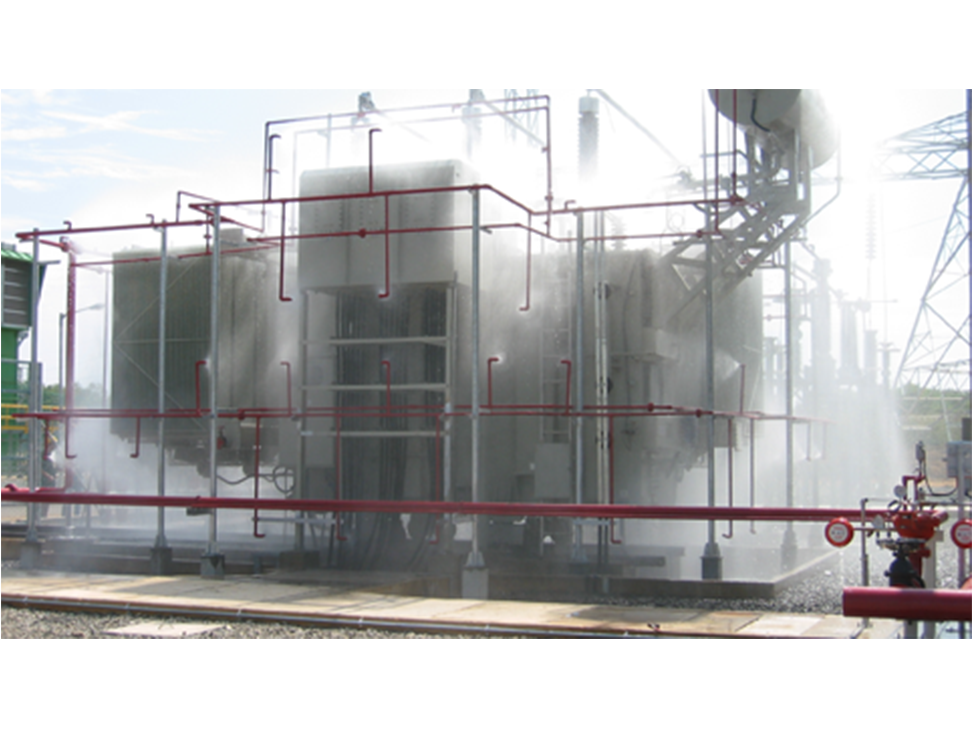

High velocity (HV) nozzles are mainly used in water spray systems for the protection of stationary hazards such as transformers and circuit breakers.
Water curtain nozzles distribute water evenly all the way to the ground. Water curtains are manufactured and used to separate the area under fire from adjacent areas or the area in which it is located.

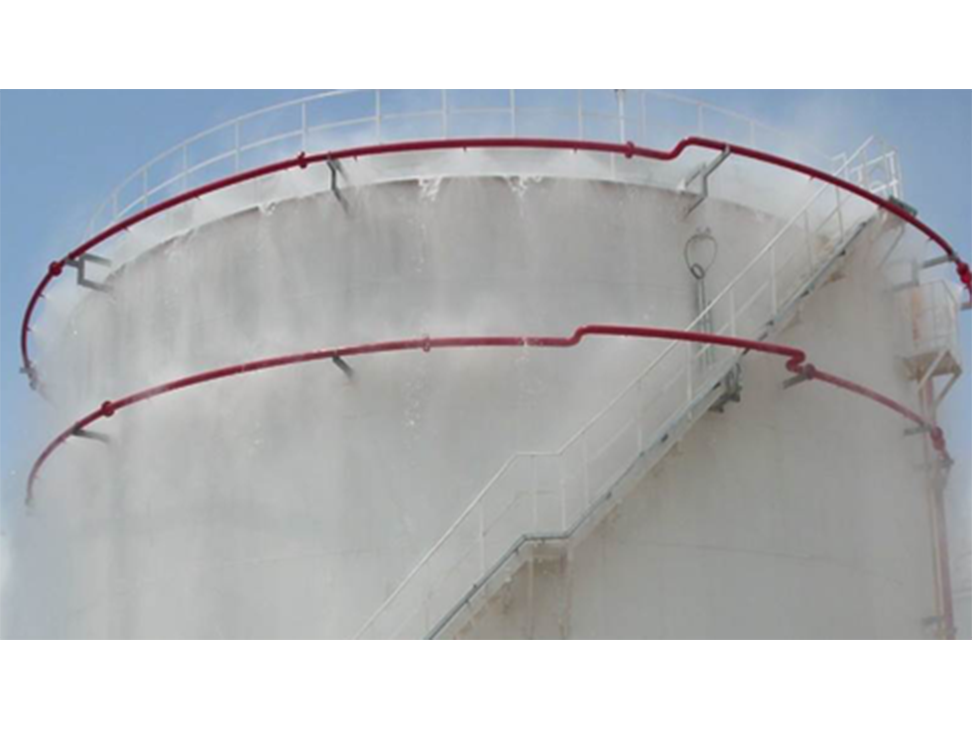

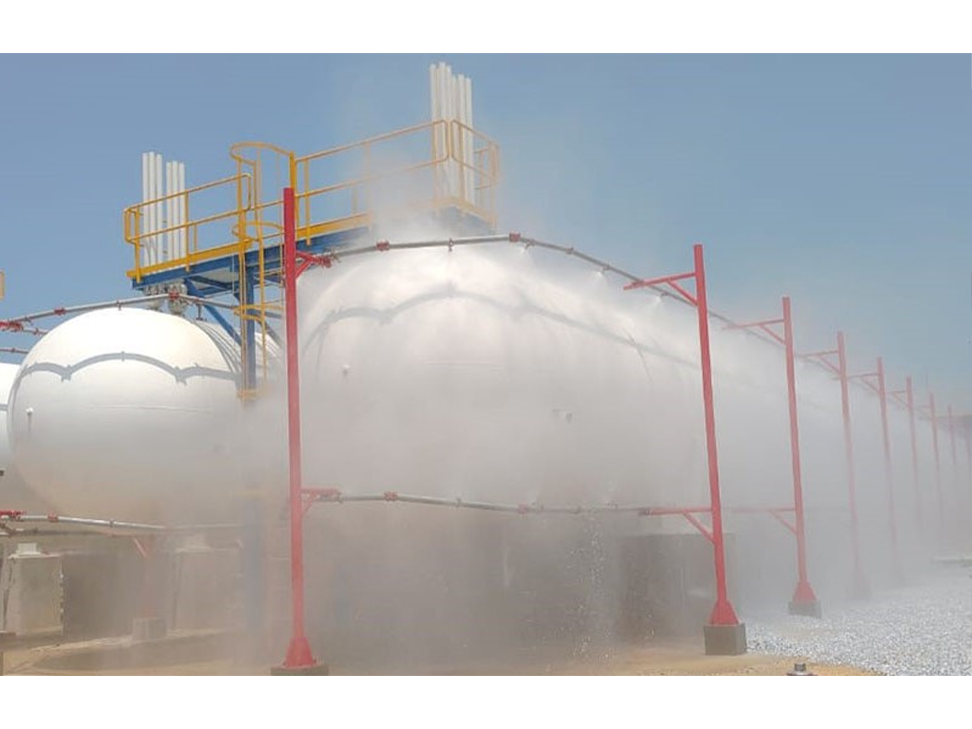

Tank cooling nozzles are used for cooling tanks.
Usage Areas of Water Spray Systems;
Fuel Terminals
Storage Tanks
Refineries
Open flammable liquid storage areas
Process equipment
Cable and Installation Galleries
Escalators and Escalators
Horizontal continuous dryers
Transformers and Generators
Rolling Units
Water Spray Systems are mainly used for fire control, extinguishing, cooling, prevention and/or protection from exposure of industrial hazardous areas.
Our nozzles are UL Listed and/or FM Approved. Please contact 3A sales team for approval information, technical specifications, points of use and installation method.
