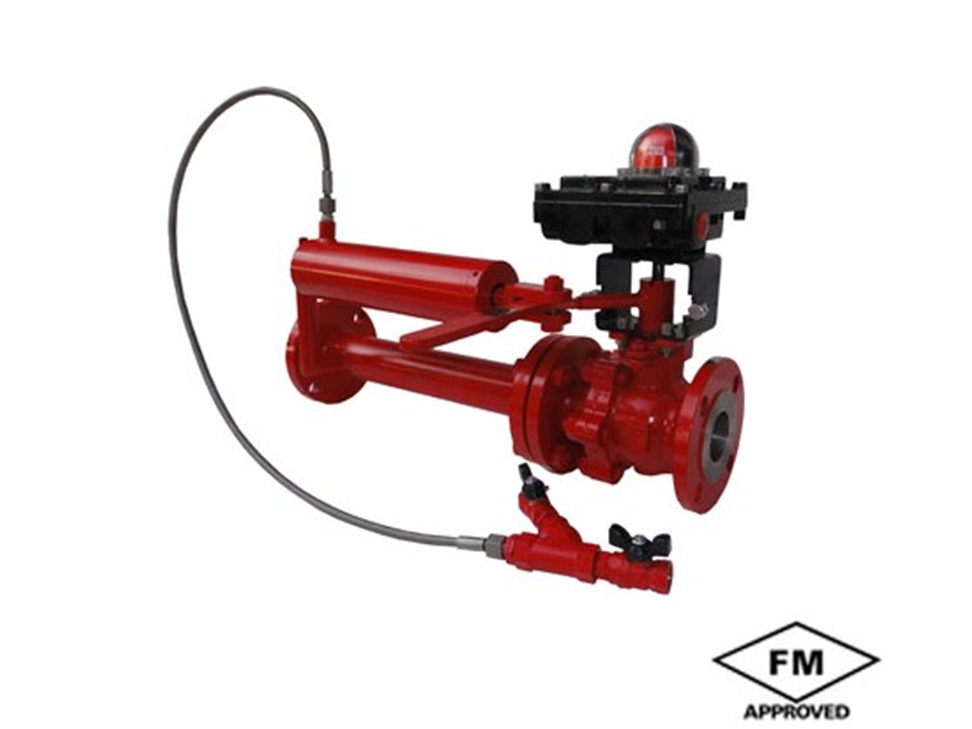

3A HCV Hydraulic Concentration Control Valve is designed to be used at the proportioner inlet in Diaphragm Tank foam proportioning systems. The Hydraulic Control Valve is triggered by the hydraulic pilot line through the system control valve trim after the foam system is activated.
The 3A HCV Hydraulic control valve is part of the Diaphragm Tank Foam System and is FM approved
Hydraulic Control Valve General Features
25, 40 and 50 mm (1“, 1½” and 2″) standard production
Stainless steel material
Hydraulic controlled valve
Operating pressure 2.1 – 12 Bar (30 – 175 psi)
Suitable for use with Diaphragm Tank and In-Line Proportioners
Production equipped with visual display and limit switch
